Facility Overview

Infrastructure & Machinery

Backed by state-of-the-art infrastructural abilities, precision machinery, and advanced measuring instruments to meet rigorous manufacturing demands.

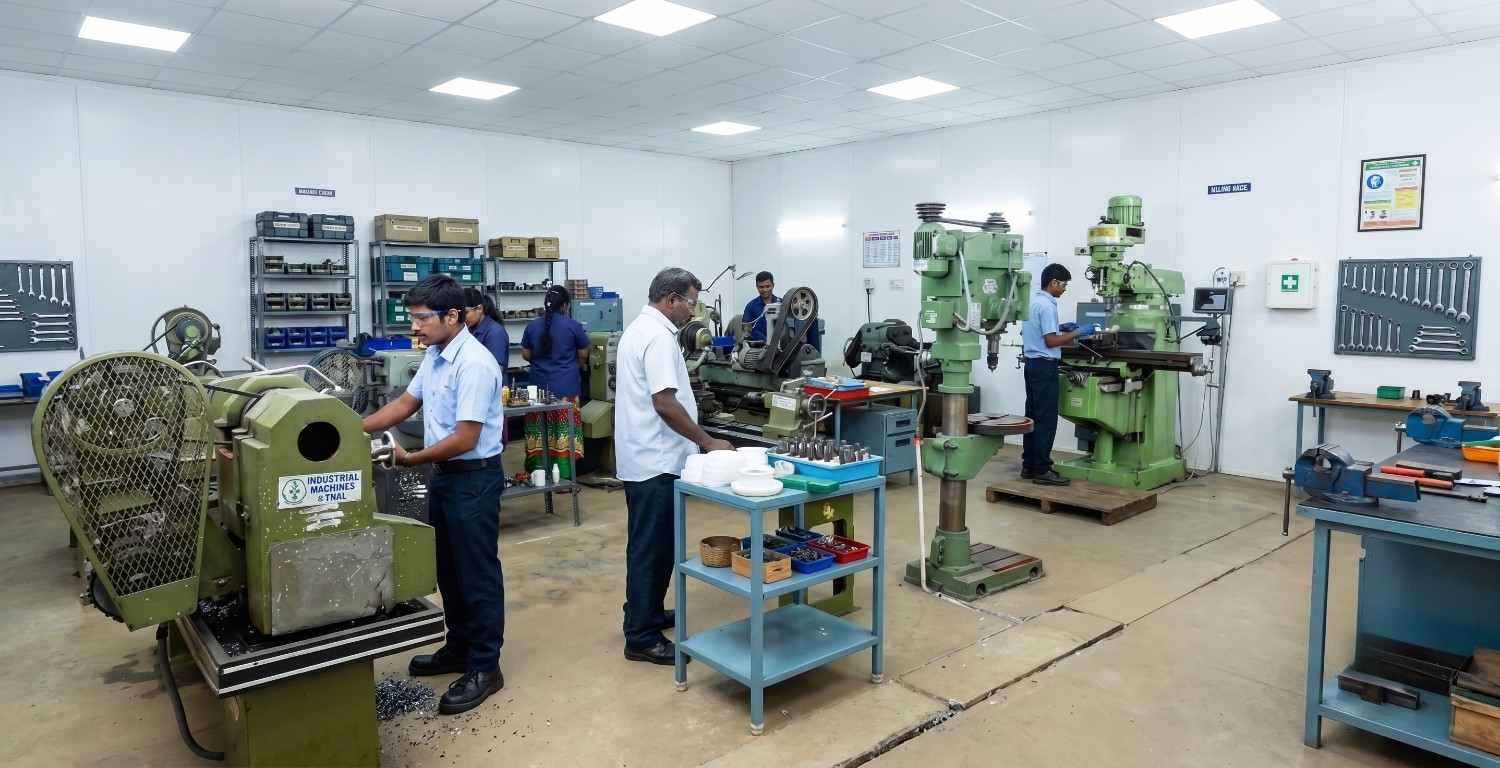

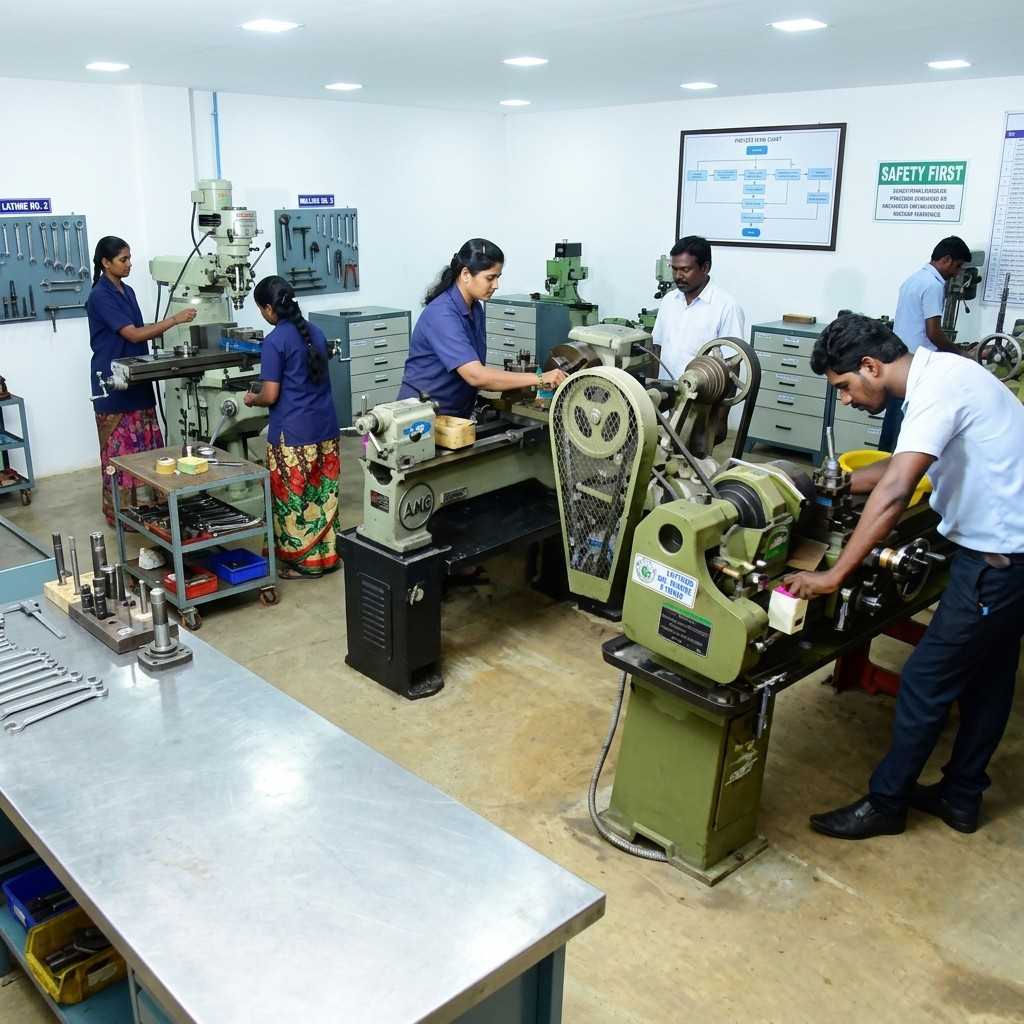

Facility Gallery

State-of-the-Art Operations

Manufacturing Power

Master List of Machines

S.No. Name of the Machine Machine Code Make Qty. Capacity

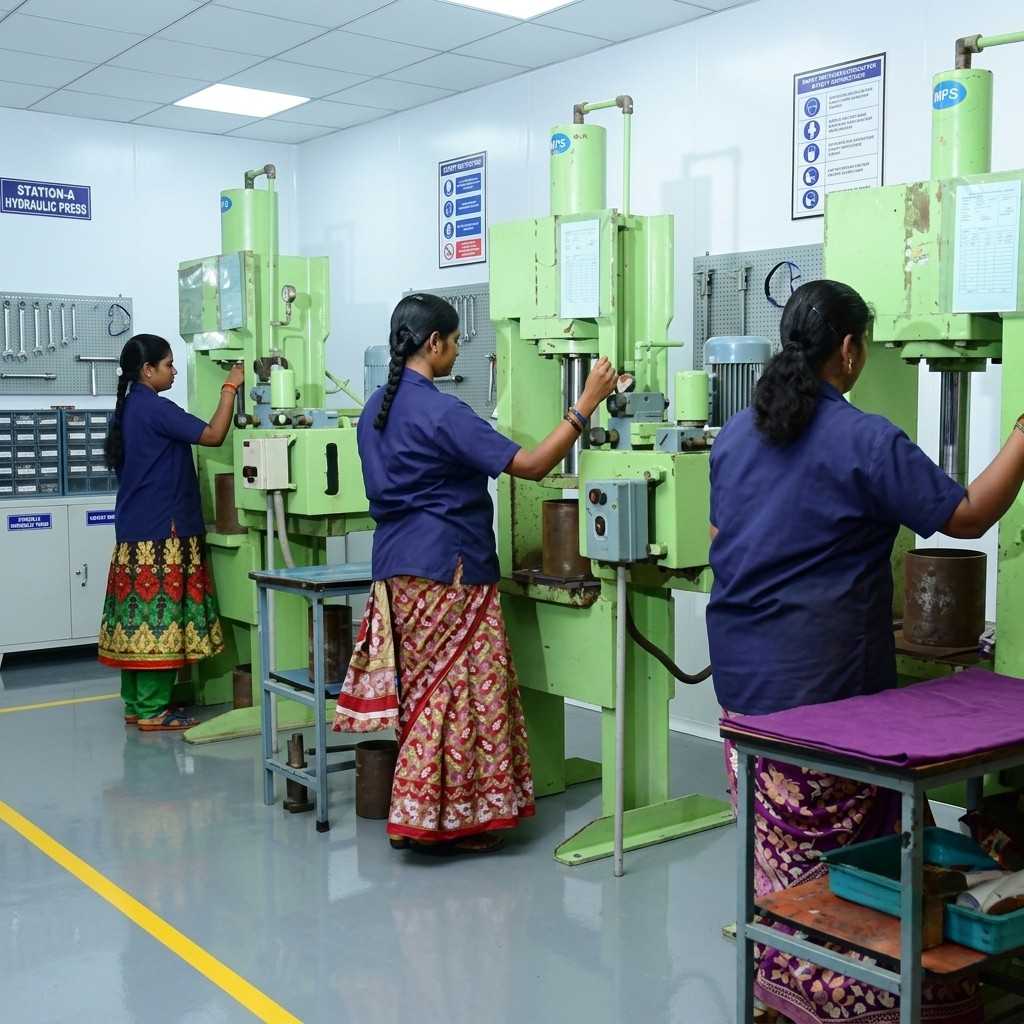

1Double Acting Hydraulic PressHPFabricated330, 50, 100 TON
2Power PackPPPolyhtron380 Lits.

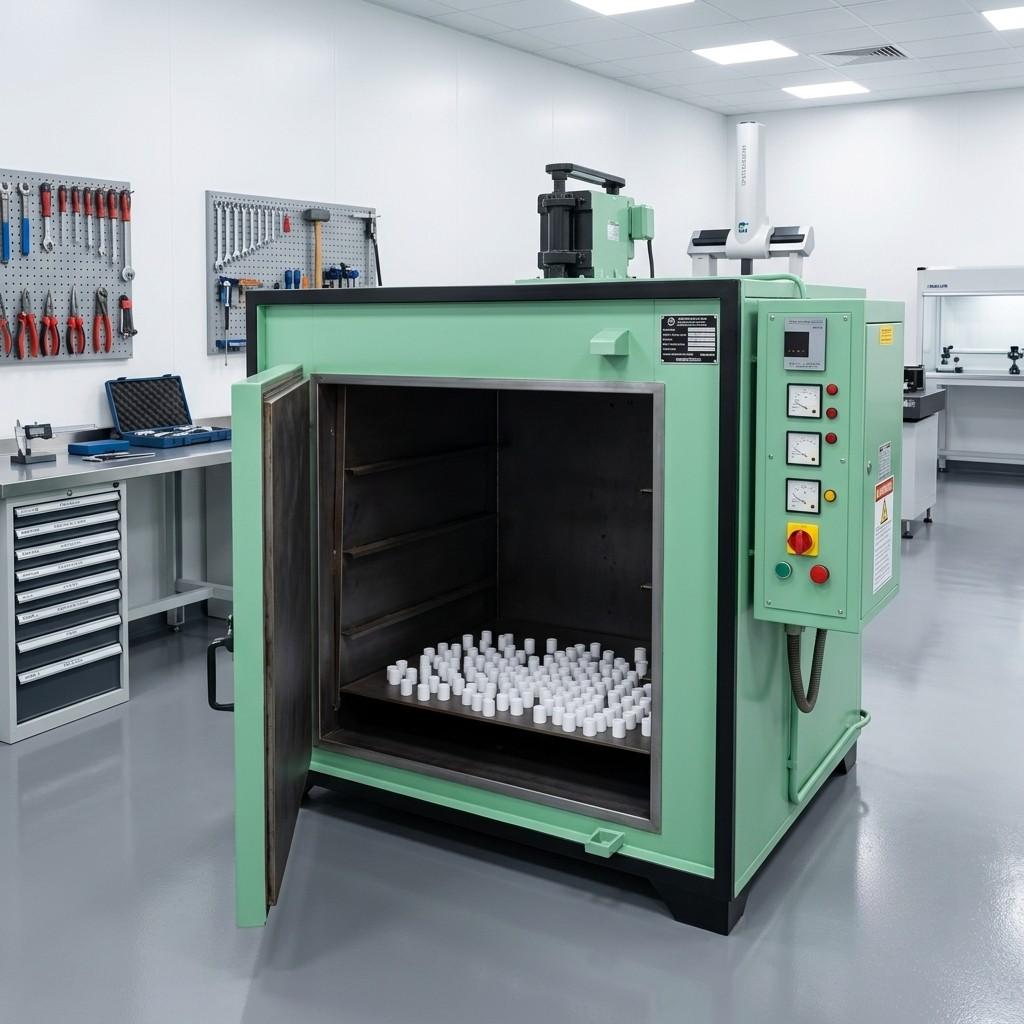

3OvenOvenFabricated230Kgs & 5Kgs

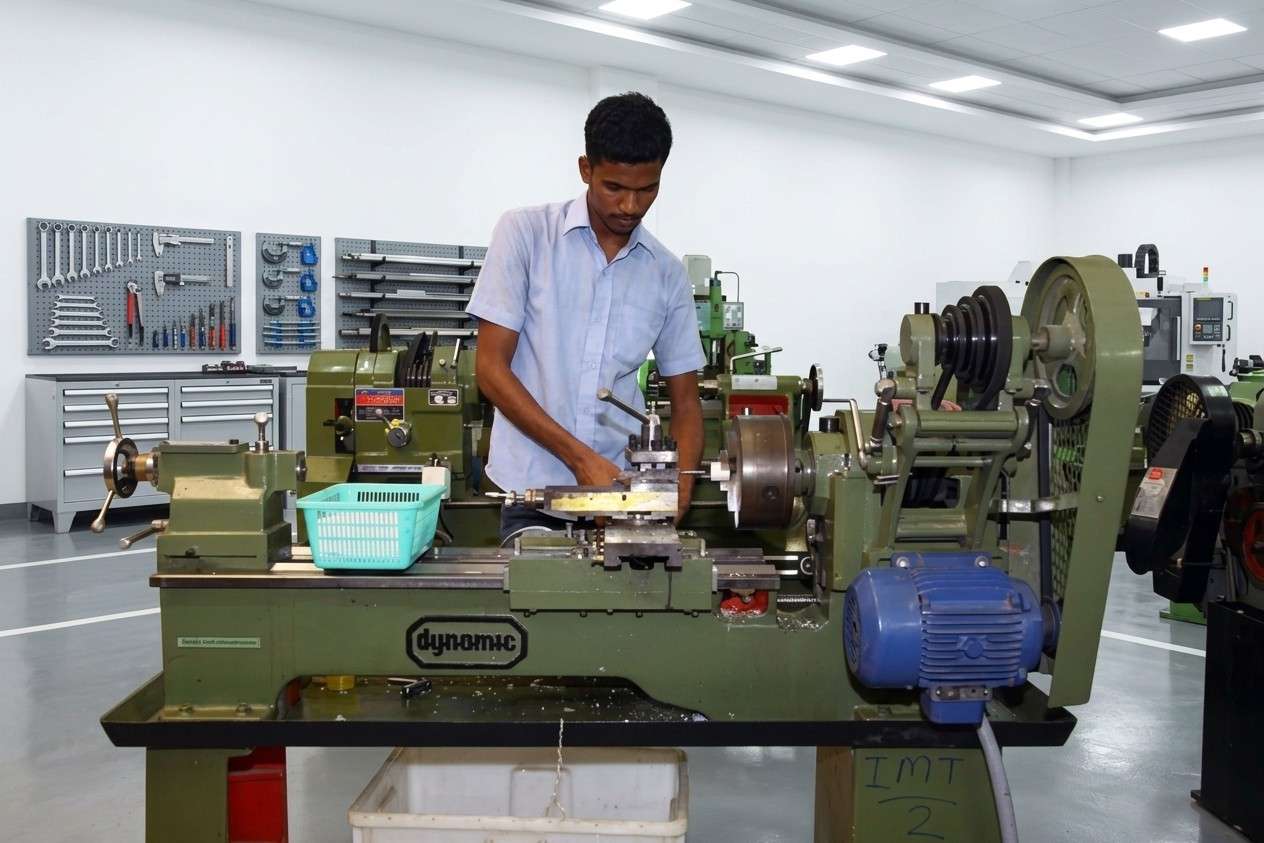

4Lathe Light DutyLAnil, Dynamic84 1/2 ft

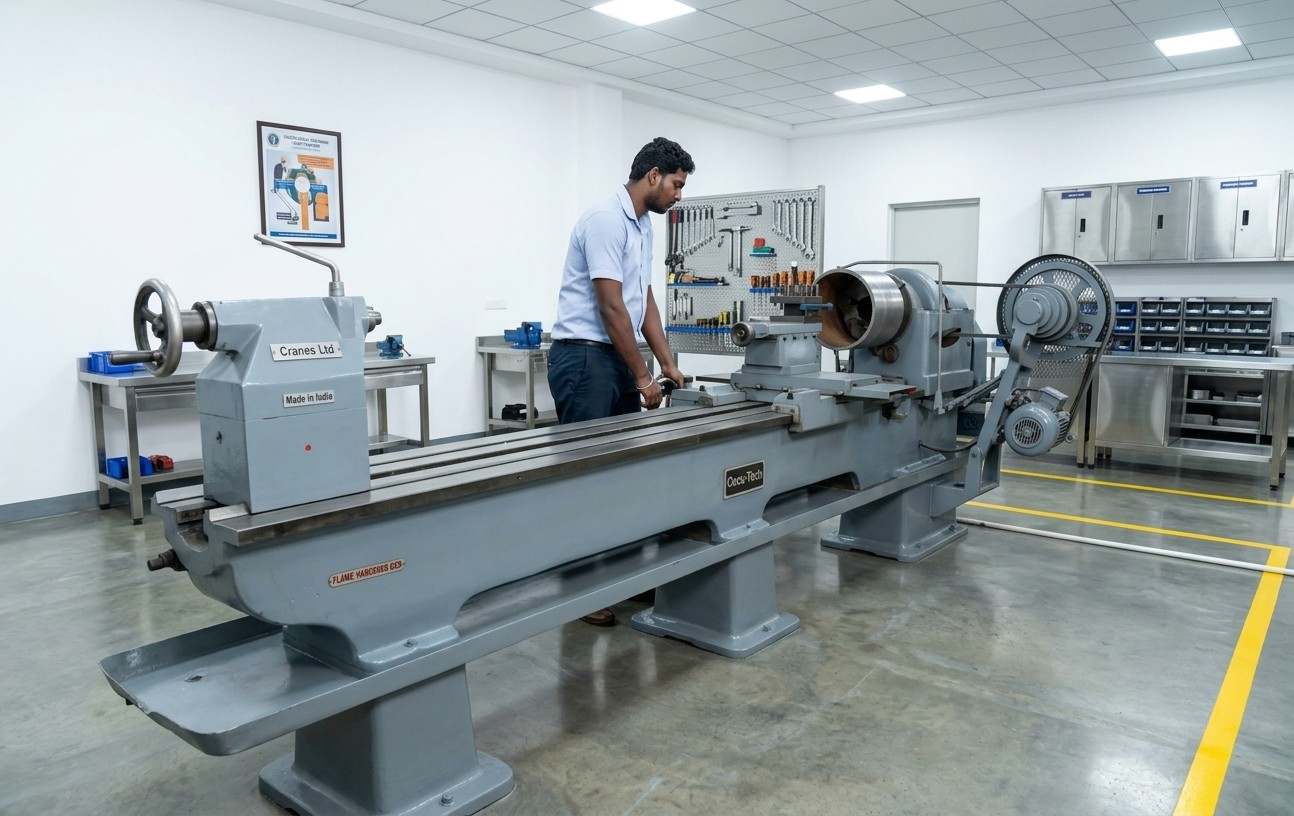

5Lathe Heavy DutyLDynamic15 1/4 ft
6Lathe Heavy DutyLAccu Tech112 ft
7Drilling MachineDVisam, ITCO21/2''
8Tool grinderTMgeeyem21 HP
9Bench PolisherBMgeeyem, ELMACO10.5, 1 HP
10Hand PressHFabricated112" X 12"

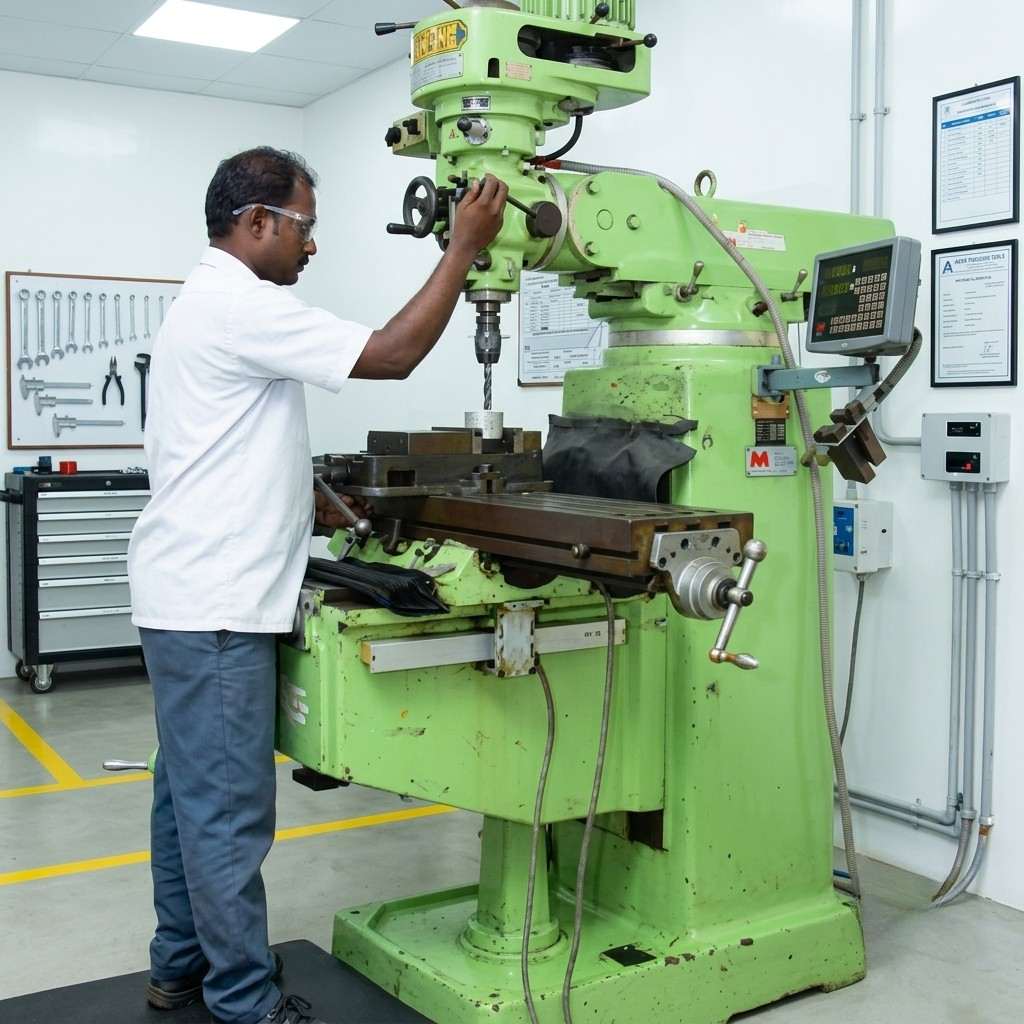

11DRO Milling MachineM-1-

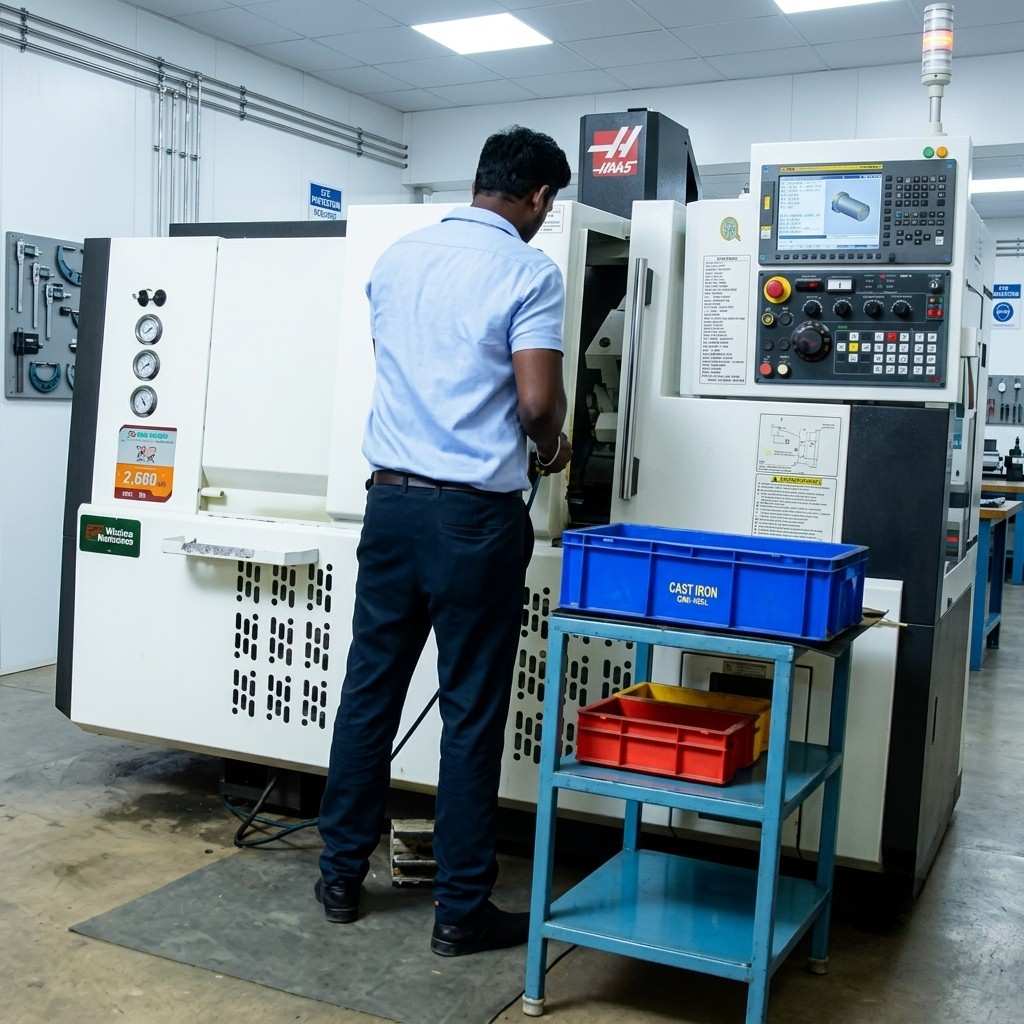

12CNCCNCAce Designers Ltd1Turning Dia - 320mm, Length - 400mm
13CNCCNCAce Designers Ltd1Turning Dia - 320mm, Length - 400mm
14Air CompressorCMastro1200 lits.
Precision Assurance

Master List of Measuring Instruments

S.No. Description Specification (Range) Code No. / Serial No. Qty.
1Oven 01 - Temperature Indicator0 to 500° CSELEC - PID5131
2Oven 02 - Temperature Indicator0 to 500° C-1
3Digital Caliper0-150 mm - Mitutoyo208561
4Digital Vernier Caliper0-150 mm - Baker-1
5Digital Caliper0-200 mm - Mitutoyo0013779, 0008132, 00358636
6Digital Caliper0-300 mm-1
7Digital Caliper0-300 mm - Mitutoyo306131
8Vernier Caliper0-300 mm - Mitutoyo141901141
9Vernier Caliper0-200 mm - Mitutoyo-1
10Vernier Caliper0-600 mm-1
11Dial vernier Caliper0-200 mm - Mitutoyo-1

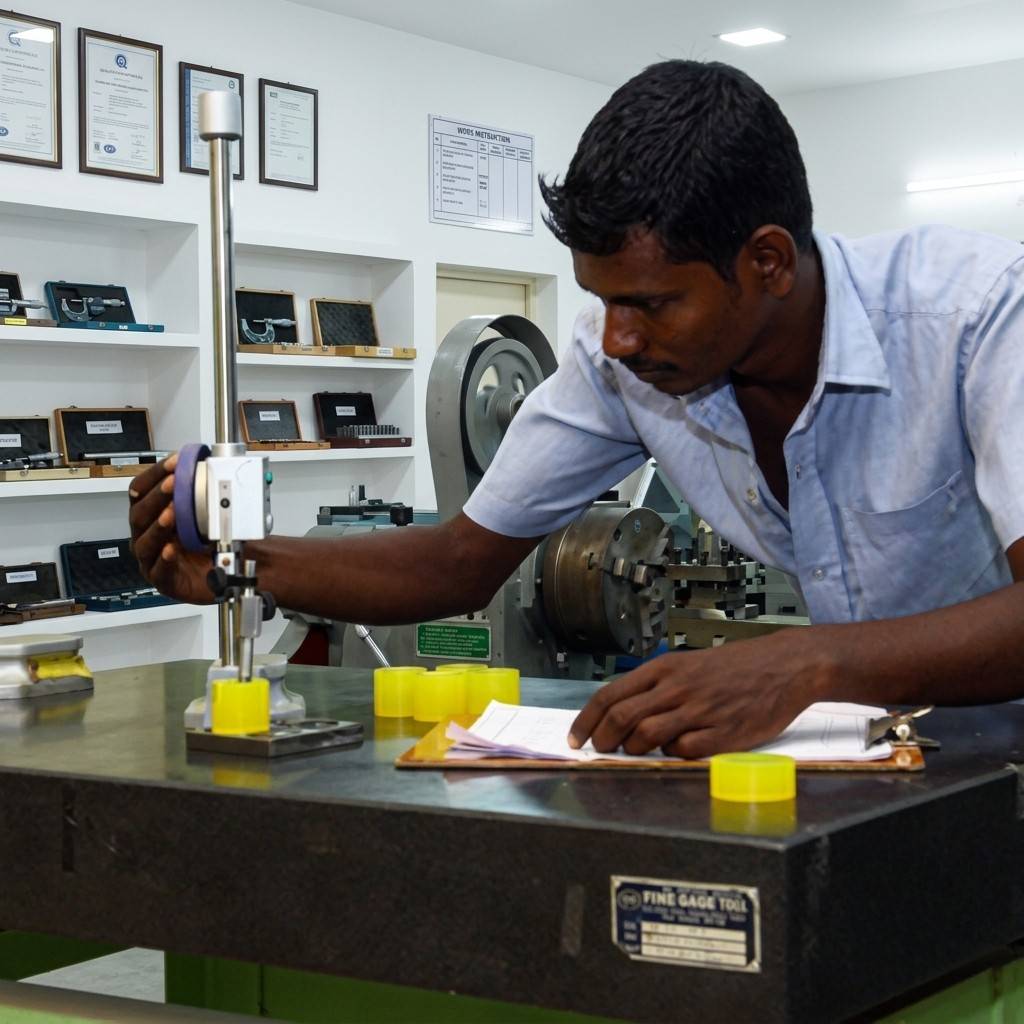

12Vernier Height Gauge0-600 mm - Mitutoyo514-10311
13Digital Height Gauge0-300 mm - Mitutoyo-1
14Thickness Gauge0.01 to 10 mm - BakerTYPE - JO21
15Radius Gauge1 to 7 - Mitutoyo-1
16Radius Gauge7.5 to 15 - Mitutoyo-1
17Bore Gauge18-35 mm - Mitutoyo-1
18Bore Gauge35-60 mm - Mitutoyo-1
19Bore Gauge50-150 mm - Mitutoyo-1
20Analog Outside Micro Meter0-25 mm - Mitutoyo-1
21Analog Outside Micro Meter25-50 mm - Mitutoyo-1
22Outside Micro Meter50-150 mm - Mitutoyo-1
23Surface Table1000 x 630 x 100 mmNS-SP-0901
24Electronic Weighing Scale5 kg (Phoenix,Iota)-3
25Electronic Weighing Scale150 kg-1
26Duro MeterShore A1477222
27Duro MeterShore D1470712
28Pressure Gauge0-100, 0-600, 0-400 kg/cm2EN 837-1( WIKAI )3
