Engineering Plastics

PEEK
Components.

Cholan Industries Pvt Ltd specializes in the manufacture of quality volume Virgin PEEK, Carbon Filled PEEK, and Glass Filled PEEK Moulding and turned parts.

View Specifications

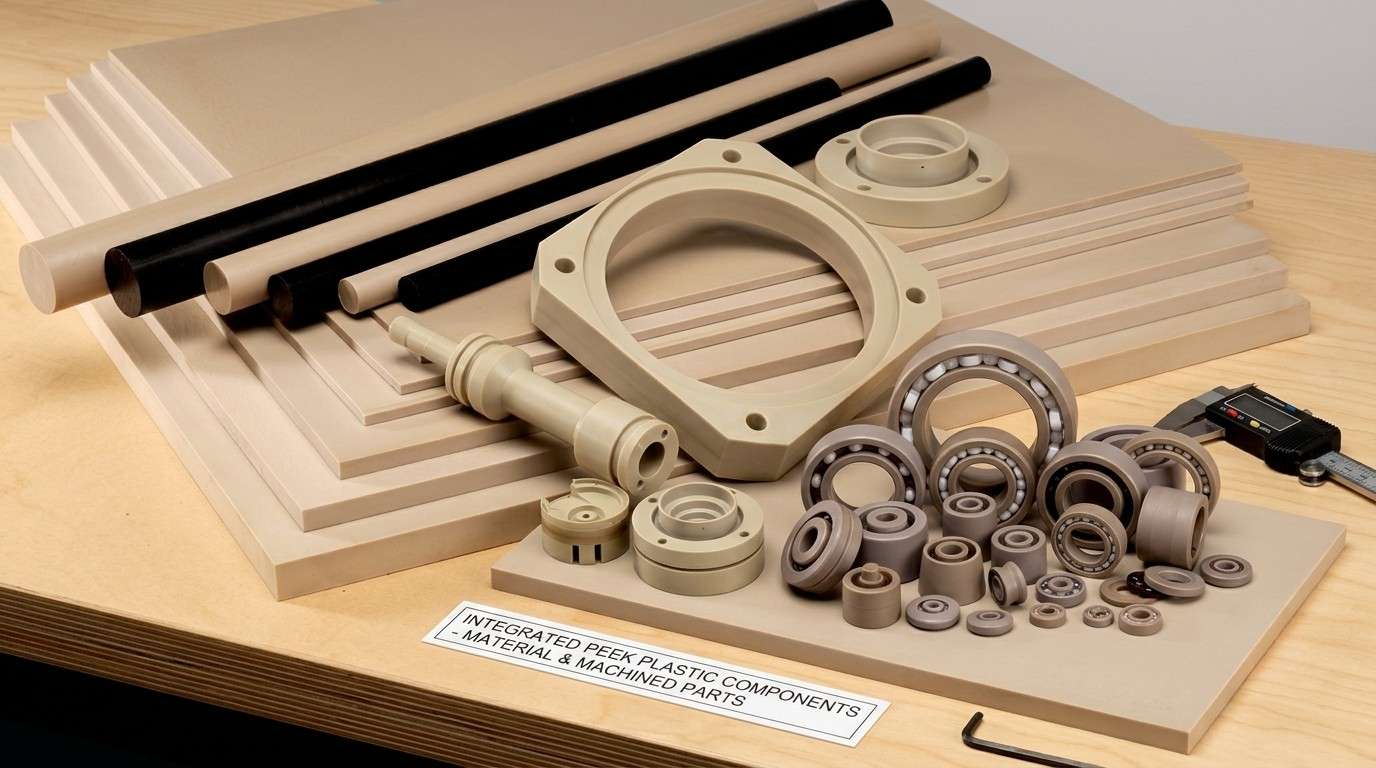

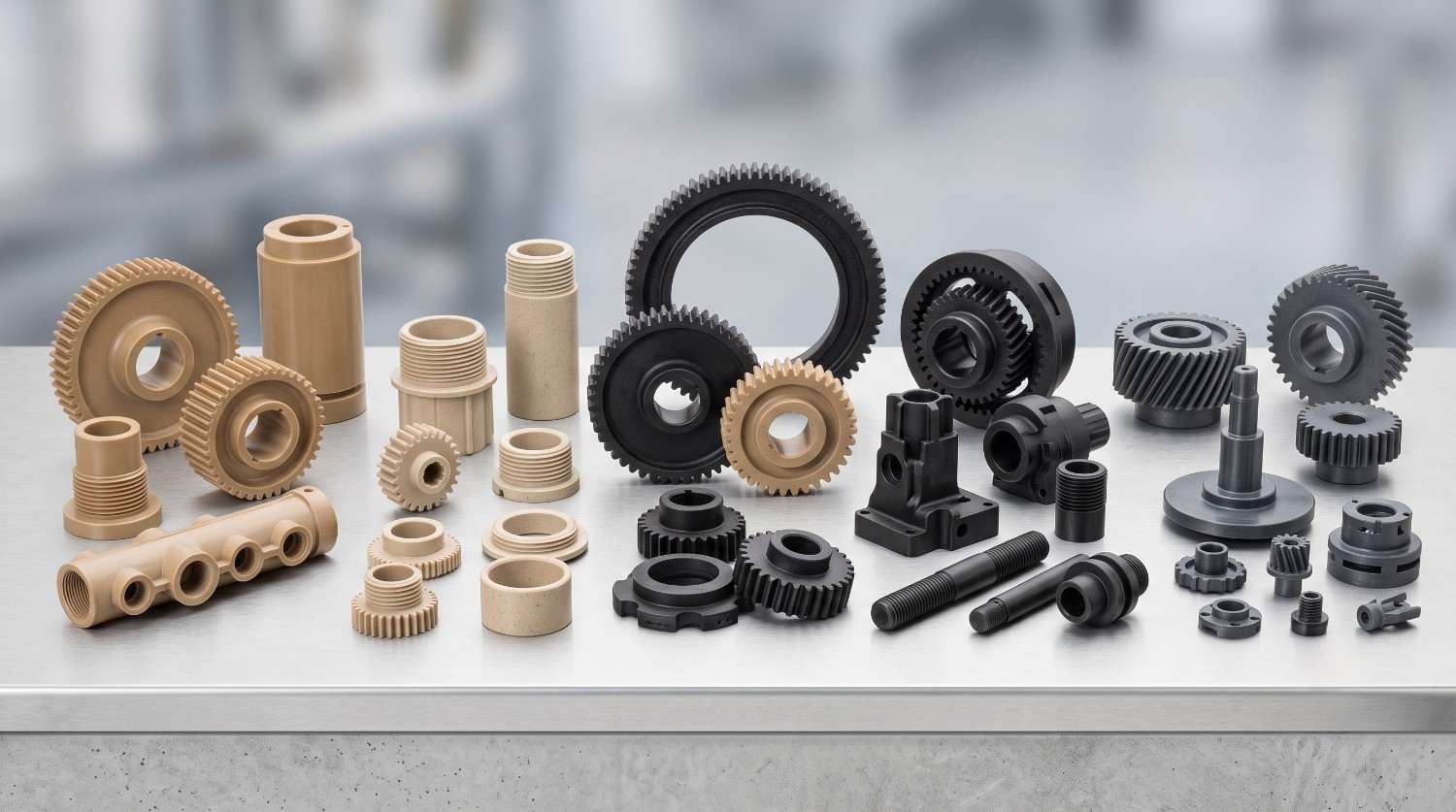

Machined PEEK components and materials
High-Performance Polymer

Advanced thermal and mechanical stability.

Polyether ether ketone (PEEK) is a colourless organic thermoplastic polymer in the polyaryletherketone (PAEK) family. It is a semicrystalline thermoplastic boasting excellent mechanical and chemical resistance properties that are retained even at highly elevated temperatures.

It is highly resistant to thermal degradation as well as attack by both organic and aqueous environments, making it one of the few plastics compatible with ultra-high vacuum applications.

Tensile Strength

90 - 100 MPa

Young's Modulus

3.6 GPa

Glass Transition

143°C (289°F)

Max Operating Temp

250°C (482°F)
Close up of PEEK material properties
Material Advantages

Why industries choose PEEK.

Strength & Stability

Offers excellent strength, stiffness, and dimensional stability even in harsh, high-temperature environments.

Lightweight Substitute

Easy to process and significantly more lightweight when compared to standard metals like steel, aluminum, and titanium.

Low Friction

Features a highly impressive low co-efficient of friction and exhibits high wear resistance without the need for lubrication.

Chemical Resistance

Chemically resistant and insoluble in common solvents, including highly reactive acids, salts, and oils.

Inherent Purity

Features exceptionally low out-gassing and low particle generation, guaranteeing reduced contamination for sensitive environments.

Biomaterial Grade

Considered an advanced biomaterial safely utilized in medical implants, spinal fusion devices, and reinforcing rods.

Manufacturing Output

Built for demanding applications.

PEEK is extensively used across the aerospace, automotive, chemical processing, and medical industries. We turn and mold this advanced polymer into precision parts ready for assembly.

Products Manufactured

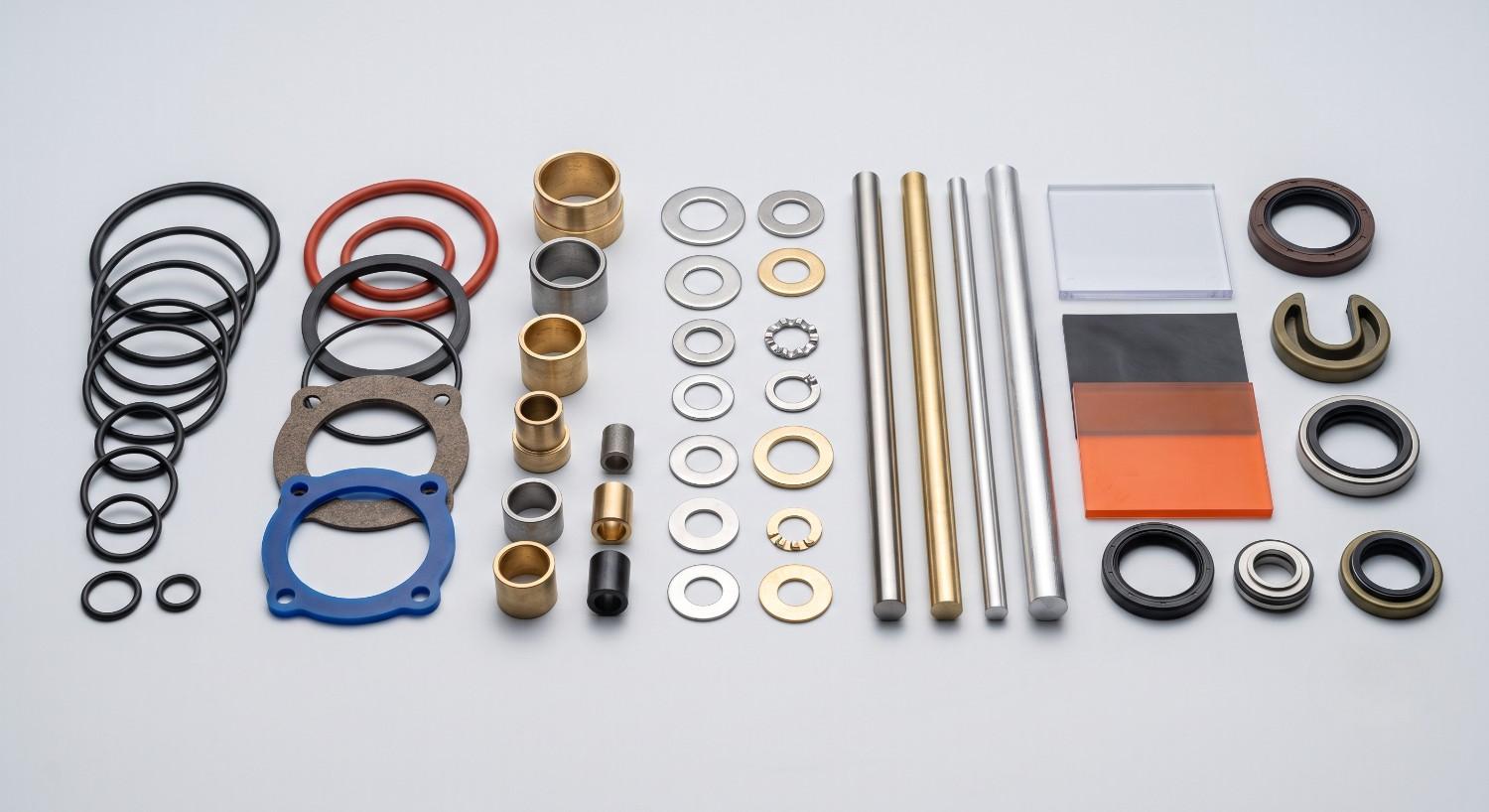

We manufacture a vast array of items used in demanding applications, including high-wear bearings, piston parts, pumps, HPLC columns, compressor plate valves, and insulators.

Valve Seats O-Rings Back up Rings Thrust Pads Sealing Bushes Stem Seals Bushes Rods & Sheets Bearing Rings Washers (All Kinds) Inserts Spiral Backup Rings Gaskets Packing Sets
Collection of manufactured PEEK parts

Ready to leverage PEEK?

Submit your drawings and requirements to our engineering team for high-volume, precision PEEK manufacturing.
